Compacting Hyper-V VHDX Files of Ubuntu Linux VMs

Note: if your guest OS supports the trim command you can use the faster method described in this article.

If you configured your Hyper-V virtual machines with dynamically expanding virtual disks you will find that the VHDX files backing the virtual disks always grow in size, they never shrink. Eventually this becomes a problem either directly because of increased storage requirements or indirectly because backups take longer. Compacting VHDX files is possible but more complicated than I feel it should be. I have described the process for Windows VMs here. This article shows how to do it for Ubuntu Linux VMs.

Assessment

I am describing the process of reducing virtual hard disk size using our Ubuntu web server VM as an example. I distinctly remember that the VHDX size was approximately 24 GB when I installed the machine about 1.5 years ago. Let’s take a look at the current size:

PS C:\> dir 'D:\VMs\www1-ubuntu\Virtual Hard Disks'

    Directory: D:\VMs\www1-ubuntu\Virtual Hard Disks

Mode   LastWriteTime       Length         Name
----   -------------       ------         ----
-a---  29.11.2015 00:20    60704161792    www1-ubuntu.vhdx

Wow, that’s a whopping 60 GB! The VHDX’ size more than doubled! Let’s see what we can do about that.

Of course, you can get the same information from Hyper-V Manager’s GUI, too, by inspecting the virtual hard drive:

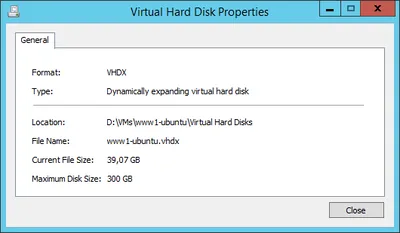

VHDX size in Hyper-V Manager

(Above screenshot was taken at a later time, thus the different size)

Preparation

The key to success is to zero all deleted blocks on the disk. For performance reasons the OS does not do that but simply marks those blocks as deleted, keeping the actual data as it is. But we can politely convince Linux to fill all deleted blocks with nulls using the following commands:

sudo apt-get install secure-delete

cd /

# This may take hours
sudo sfill -llz .

sudo shutdown -h now

Unfortunately the VM needs to be shut down for the size reduction. So no quick online no-downtime operation. Rather a lengthy service not available kind of thing.

Action

The actual size reduction of the VHDX file(s) is performed on the Windows host command line as follows:

PS C:\> gci -File -Filter *.vhd* -Path D:\VMs -Recurse | % {Mount-VHD $_.FullName -ReadOnly; Optimize-VHD $_.FullName -Mode full; Dismount-VHD $_.FullName}

The PowerShell command line above processes all VHDX files below a given base directory (D:\VMs), mounts each file read-only, compacts it and dismounts it.

Result

Let’s take a look at the result:

PS C:\> dir 'D:\VMs\www1-ubuntu\Virtual Hard Disks'

    Directory: D:\VMs\www1-ubuntu\Virtual Hard Disks

Mode   LastWriteTime       Length         Name
----   -------------       ------         ----
-a---  29.11.2015 13:25    24868028416    www1-ubuntu.vhdx

Not bad, from 60 GB down to 24 GB!
