Visualizing the Impact of Folder Redirection – Start Menu Search
- Part one: How Folder Redirection Impacts UX & Breaks Applications
- Part two: Visualizing the Impact of Folder Redirection – Logon and Application Launch
- Part three: this article
- Part four: Measuring the Impact of Folder Redirection – User Logon
Previously on this Series
If you have been following this mini-series you know that after explaining the basics in part one we got to the juicy bits in part two, where Aaron Parker presented videos that vividly show that folder redirection indeed speeds up user logons considerably, but at the price of potentially horrible user experience during the session. In this third part we are going to explore that in more detail.
Start Menu Search
For obvious reasons the start menu is one of the places accessed most often on a Windows desktop. Its search functionality makes it fast and convenient to hunt for the application or document required at any specific moment. Just press the Windows key (or click Start), type the first few characters of the application name you are looking for and hit enter a few hundred milliseconds later when the search result materializes. At least that is the way it is supposed to be.
Folder Redirection to a Busy File Server
With folder redirection enabled a few hundred milliseconds can easily turn into twenty seconds as the following video demonstrates:
What is happening here? Why is it taking so long?
Some files required by Start Menu Search reside in one of the redirected folders on a very busy file server. Bringing those files in is what makes the search unbearable slow. The thing to keep in mind is that the search is slow every single time as long as the file server is busy.
With a single super-simple search for locally installed Event Viewer taking about 20 seconds – what is the setup? We kept it deliberately simple and the profile small:
- User with a small roaming profile (114 files, total size 4.7 MB)
- File server CPU 99% (deliberately not 100%!)
- Folder redirection enabled for: AppData, Desktop, Documents, Pictures, Music, Videos, Favorites
Folder Redirection to a Busy File Server but Start Menu Redirected Back to Local Disk
As we explained in the first article when you redirect AppData you also redirect the Start Menu, among other things. So we wondered what would happen if we redirected the Start Menu back to its usual location on the local disk – would Start Menu Search be fast again? See for yourself:
Not really. As broken as before.
By the way, the fact that it is less slow than in the first video is probably due to minimal changes in file server load. The point being that it is slow.

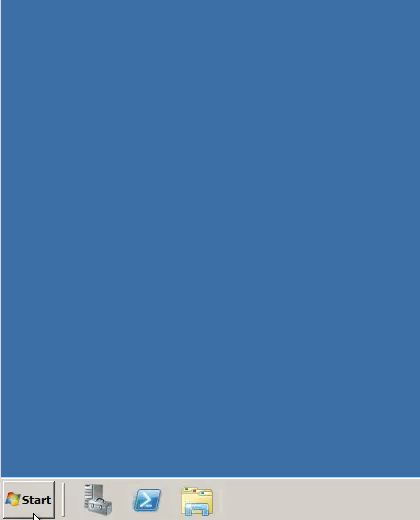

Folder Redirection to a Busy File Server but Without AppData Redirection
Next up in our experiments we left everything as in scenario one but did not redirect AppData. The change is obvious:
Without AppData redirection Start Menu Search is consistently fast even with a very busy file server.
This is just one of many situations where an application is totally dependent on certain files expected to be on fast (local) storage. If those files cannot be accessed quickly the application is slow.

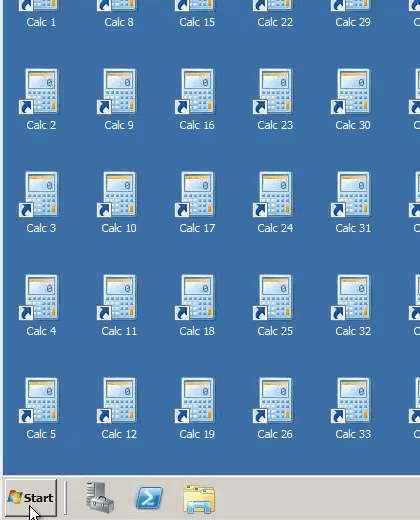

Citrix Profile Management with Streaming
We looked at Citrix Profile Management as a potential alternative to folder redirection. With streaming enabled files from the user profile are brought in asynchronously on-demand. In other words: whenever an application tries to access a file, Profile Management copies the file from the server to the local disk. Let’s see the effect this has on Start Menu Search:
The result is interesting: initially search is slow, but that is only true for the very first search. After that all files reside on the local disk and search is consistently fast!
By the way, we even used a large profile (2,334 files, 33.7 MB) in this video to make sure that it stays fast in realistic scenarios.
Folder redirection, especially AppData redirection, can totally kill application performance. Even if your file server is only busy for a minute at a time hundreds or even thousands of users are bound to notice, leading to support cases of “unexplicable” application slowness nowbody can put a finger on.
At the end of the day “Citrix” gets blamed for natural oscillations in file server performance. Nobody wins.
